Description
Paragon brake pads offer excellent overall braking performance optimized for a wide range of motorsport, high performance, and sport driving applications. Manufactured by Winmax Japan, a highly recognized manufacturer with 60 years of experience in manufacturing high performance brake pads, to deliver superior stopping power, excellent modulation and control, durability, reliability, high fade resistance, and consistent performance under high temperature conditions. Race proven friction materials, perfect match with Paragon rotors to allow confidence at every braking point, lap after lap.

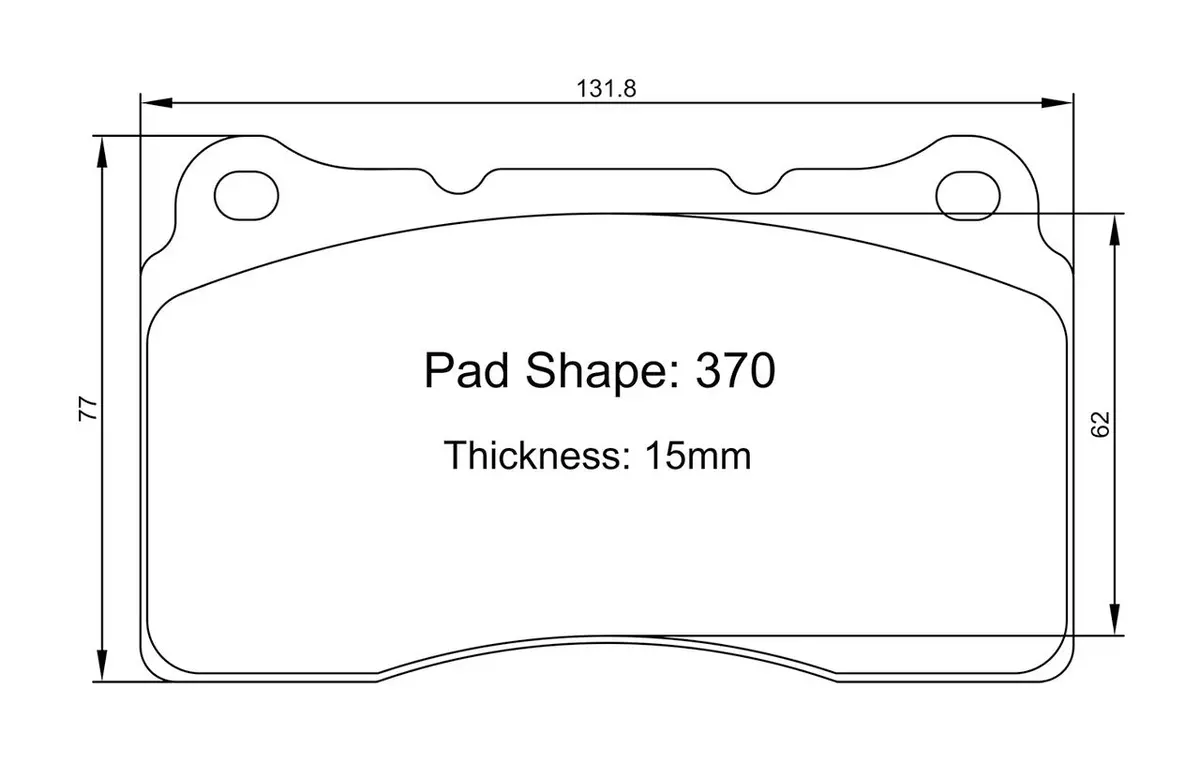

SPECS:
Pad Shape: 370
Width: 131.8mm
Height: 77mm
Thickness: 15mm
Pad Depth (D): 62mm
FITMENT:
17-21 Honda Civic Type R FK8 CTR front
23+ Honda Civic Type R FL5 front (11th gen)
24+ Acura Integra Type S DE5
15-16 Honda Civic Type R FK2 front
Mitsubishi EVO 5-10 (CP9A, CT9A, CZ4A) front
04-17 Subaru STI front (GDB / GRF / GVF / VAB) w/ OEM Brembo 4 pot calipers
Subaru BRZ Performance Package / Scion FR-S
Toyota 86 (w/ OEM Brembo calipers) front
Subaru BRZ tS front
11-12 Audi RS3 (8P) front
09-14 Audi TT RS (8J) front
Holden Commodore Redline w/ OEM 4 pot Brembo calipers
03-09 Cadillac CTS-V front
Megane 3 RS 250 front
Megane 4 RS front
12-13 Mustang Boss 302 front
CROSS REFERENCE:
OEM Honda 45022-TGH-A01 / 45022-TGH-A02 / 45022-TGH-A12
OEM Subaru 26296FE100
OEM Mitsubishi MR407376
Brembo 07.8301.84
Alcon PNF0084x336.4
Hawk HB453x.585
Pagid 2487
PFC 1001 / 7781
Ferodo FRP3067 (14.7mm thickness)
Ferodo FCP1334 (16mm thickness)
Raybestos 1001
Carbotech CT1001
Spoon Sports 45022-FK8-000
Project Mu F360
Endless EP357
Dixcel 341 225
Mugen 45022-XMEB-K000
PARAGON BRAKE PAD COMPOUNDS:
**Some compounds may be on back order, if you need immediately, contact us to confirm**
P2 COMPOUND
The P2 “Sport Comfort” compound is designed for street use where balance between performance and street friendliness is emphasized. Minimal brake dust and noise due to its non-metallic material. Improved initial bite, modulation (brake control), and temperature range over stock pads. Higher coefficient of friction for increased stopping power. Excellent pad and rotor life. Works as designed from ambient temperature. Ideal for daily driven vehicles with performance in mind.
Material: Non-metallic
Effective temperature range: Ambient – 932°F (500°C)
Average Mu: 0.29 ~ 0.32
Recommended for street use only
Comparable to: Hawk HPS, Project Mu B Spec
P3 COMPOUND
The P3 “Road & Track” compound is an all round compound ideal for sport driving, autocross, and light track duty while still maintaining street drivability. Low level of brake dust and noise. Good coefficient of friction, initial bite, and temperature range make this compound capable for track conditions. Best modulation and control characteristics among P series compounds. Great choice for occasional track vehicles without the disadvantages of dedicated track pads. Works as designed from ambient temperature. Great rear pad option for those who prefer a more front biased setup with the R5 compound up front.
Material: Semi-metallic
Effective temperature range: Ambient – 1112°F (600°C)
Average Mu: 0.34 ~ 0.37
Recommended for street / track use
Comparable to: Ferodo DS2500, Endless MXRS & MX72, Project Mu HC+, PFC 97, Hawk HP+, Pagid RS4-2
R5 COMPOUND
The R5 “High Friction Track / Competition” compound is designed as a dedicated track compound. High coefficient of friction provides sufficient stopping power for track and competition conditions. Precise modulation and release characteristics. Highly fade resistant with wide temperature range. Flatter torque curve compared to the R7 compound, providing consistent and solid braking performance throughout the effective temperature range which boosts driver’s confidence. Elevated noise and brake dust compared to P2 and P3 compounds. Relatively easy on rotors compared to competitors’ racing pad offerings. Great front pad option for lighter cars, and rear pad option for those who prefer a more front biased setup with the R7 compound up front.
Material: Metallic
Effective temperature range: 212°F – 1382°F (100°C – 750°C)
Average Mu: 0.40 ~ 0.43
Recommended for track use
Comparable to: Endless CC38(ME22) & CC-Rg, Project Mu Racing 777, Ferodo DSUNO & DS3000 , Cobalt XR3 & XR4, Pagid RST3, RS44 & RS19, CL RC6
R7 COMPOUND:
The R7 “Maximum Friction Track / Competition” compound is a full race compound with maximum coefficient of friction. With higher stopping power and maximum effective operating temperature, the R7 compound is ideal for advanced high speed track events, competitions, and heavier cars that require maximum braking performance. Good modulation and release characteristics. Excellent pad and rotor life. Higher fade resistance compared to the R5 compound, with solid pedal feel throughout the effective temperature range.
Material: Metallic
Effective temperature range: 212°F – 1562°F (100°C – 850°C)
Average Mu: 0.48 ~ 0.53
Recommended for track use only
Comparable to: Endless CC60(N30C), Cobalt XR1 & XR2, Pagid RS29, Ferodo DS3000+
***Track and race pads are not recommended to be used on streets due to elevated brake dust and noise level, possibly higher pad and rotor wear during low speed brake events, and being not able to work 100% as designed at ambient temperature. If these downsides of dedicated track and race pads are not an issue, they can be used on streets absolutely fine.
Comparison charts for Paragon brake pad compounds:
*If you are unsure about fitment, please contact us to verify fitment for your vehicle / application. There are no refunds on brake pads.*
