Description

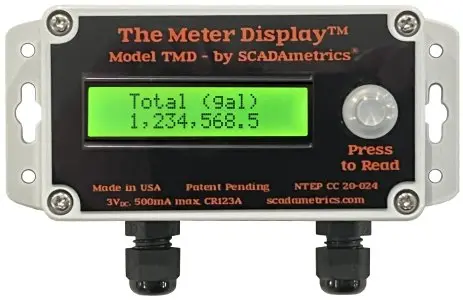

TheMeterDisplay™
Model TMD
Full-featured, yet economical, remote wall display for encoder-type water meters. Features include a large backlit LCD display, a pass-through port for an AMI/AMR endpoint, and a user-replaceable battery.
For a detailed, up-to-date list of compatible meters,
see the Meter Compatibility Matrix.
Housed Within a NEMA-4X Outdoor/Indoor Enclosure with Flange Wall Mounts.
Compatible with All Modern Makes/Models Encoder-Type Water Meters.
2 Year Warranty. Patented.
Key Features –
- Simple and Easy-to-Use: Just Press the Button!
- For Outdoor or Indoor Use
- Large, 2×16 Character Backlit Display
- Built-In Pass-Thru Port for Co-Connection to an AMI/AMR System (Works Even After Battery Depletion!)
- Low Power Consumption / 10+ Year Battery Life*
- User-Replaceable, Non-Proprietary Lithium Cell
- Displays Registration Units (Gallons, Cubic Feet, Cubic Meters, Liters, Acre Feet, Generic Units)
- Displays Correct Decimal Point Placement
- Reading Features a Comma Separator After Every 3rd Digit
- Compatible with All Late-Model, North American Encoder Type Water Meters (Sensus 4-9-digit, Neptune 6,8,9digit, Elster K-Frame Protocols).
- Displays Approximate Rate-of-Flow1. Requires Meter with 7/8/9-Digit Registration. 8/9-Digit Preferred.
- Displays Water Meter Serial Number
- Built to NEMA-4X, IP-66 Specifications. Not Submersible
- Rugged Polycarbonate Enclosure with Wall-Mount Flanges
- Easy Wiring, with Angled, Screw-Down Terminal Block
- Battery Voltage Display
- No Programming Required
- NTEP-Certified
- Literature Link
- Instructions Sheet Link
