Description

Ford Meter Box

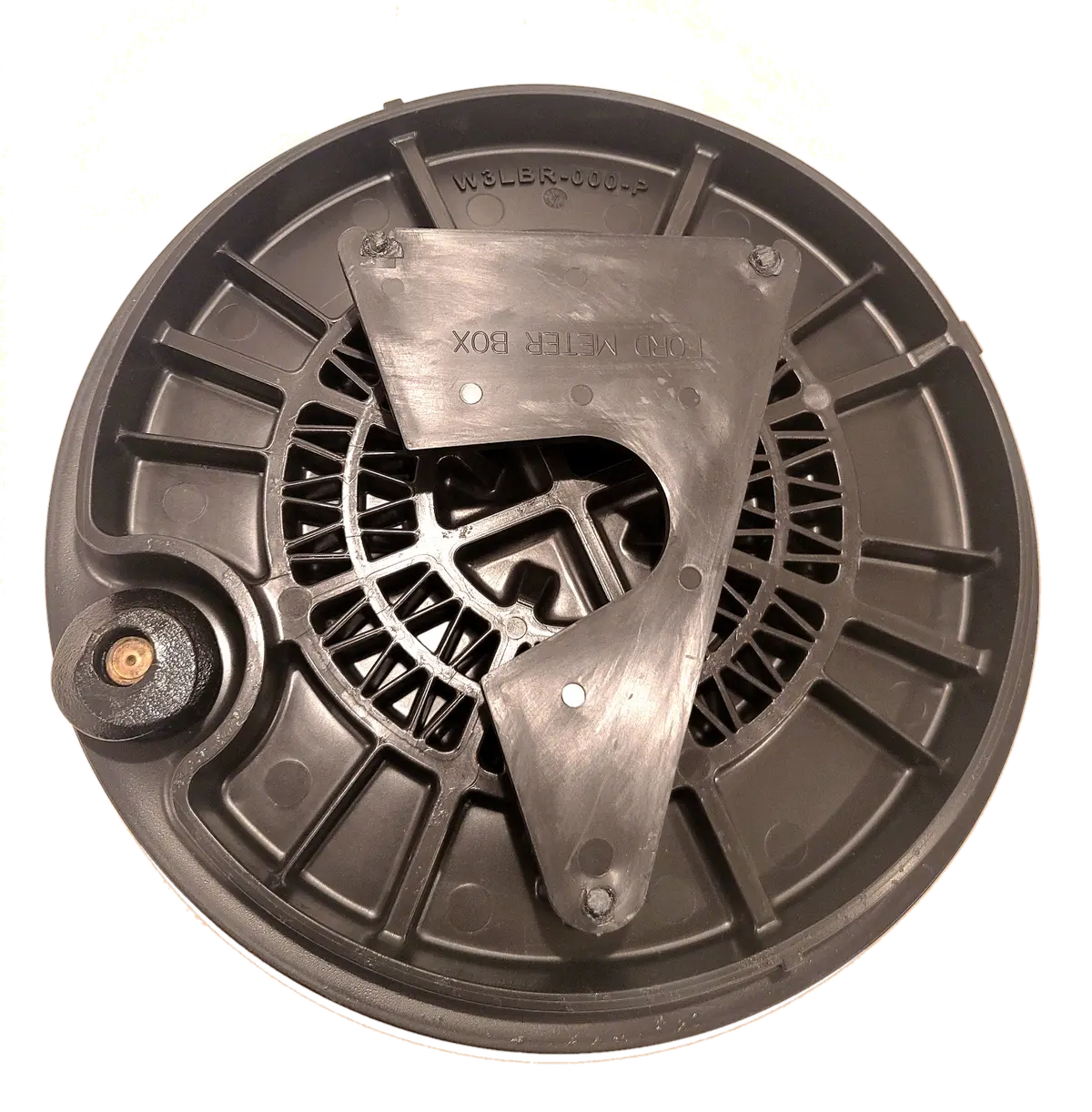

Plastic Meter Box Cover top lid

Round Type A or Type W Cover only

Plastic Lid for Type A and Type W Frames or rings, with AMR/AMI under lid bracket. This should also fit rings designed to be equal to Ford, but please check the dimensions in the description. Replacement top lid only. frame/ring not included. Can replace metal lids for A and W type meter box covers

• Round Black Polypropylene Meter Box Cover with “WATER METER” embossed on top
• UV Resistant Polymer
• Standard size brass pentagon bolt with cast iron worm gear on bottom
• Fits Ford Type A and Type W Frames (sits flush inside the rim of the frame with 11-1/2″ Clear opening.
• AMR/AMI mounting bracket under led for radio transmitter devices such as those from Badger, Sensus, Zenner, Kamstrup, Neptune, Mueller/Hersey, and others.
• Radio wave transparent polymer while protecting the antenna  under the lid.
• Ford Part Number W3LBR (WA3LPR-BR)

Dimensions:

• Top rim diameter – 12-3/16″ diameter
• Top rim thickness – 5/8″ thick
• Bottom Diameter – 11″
• Bottom thickness – 3/4″
• Overall thickness (without AMR bracket) – 1-3/8″
• Overall thickness with AMR bracket – 2-1/4″
