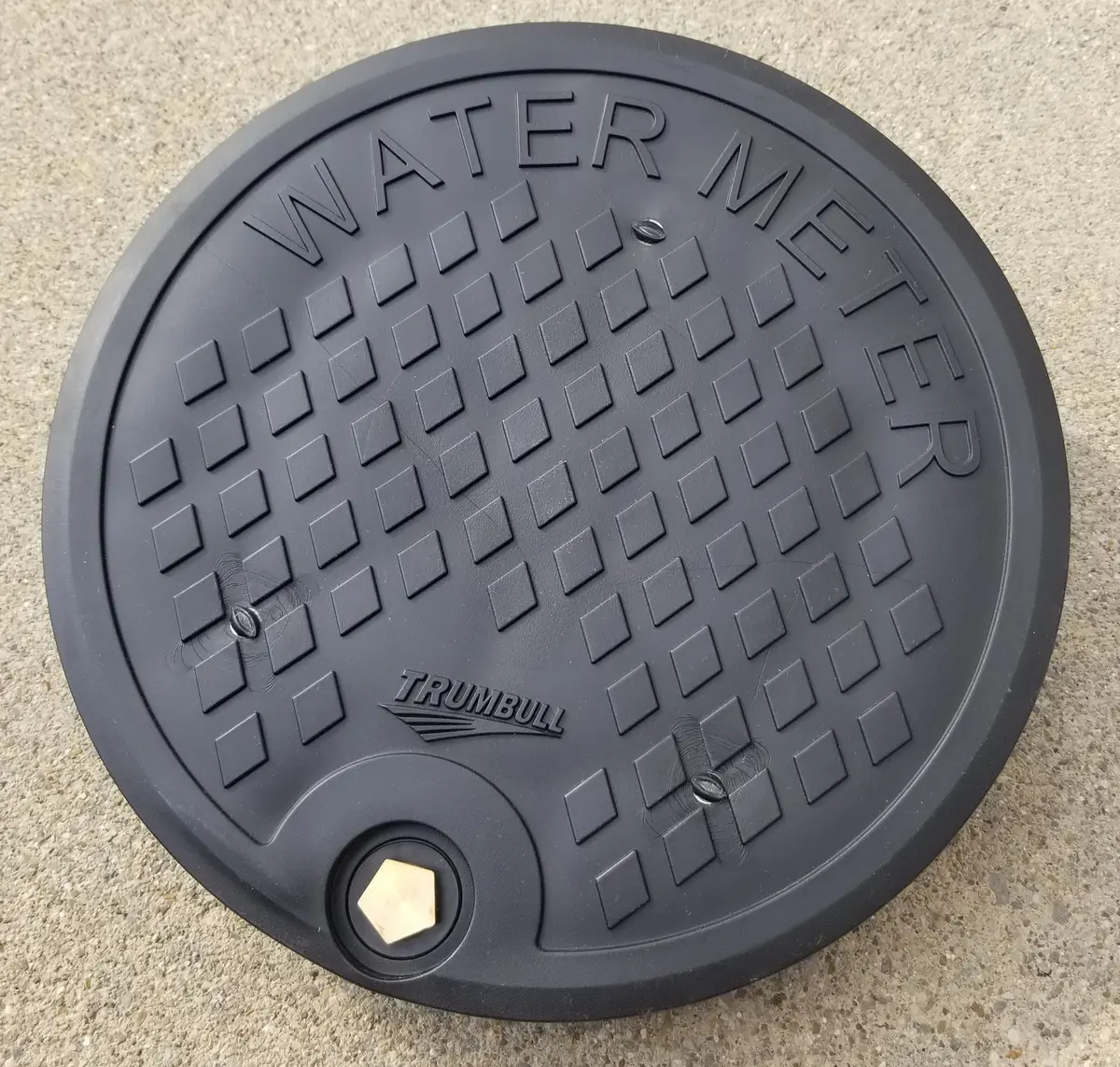

Trumbull Polymer Meter Box Cover – Solid Top Style for Type A, C, and X Boxes

Description

Trumbull Solid top lid for Type A, C, and X meter box frames/rings, or Trumbull Polymer 18″-21″ meter box frame. Under lid AMR/AMI antenna mounting is possible with the optional universal bracket or post mounts.

Dimensions:

• 11-1/2” Clear Opening
• 12-1/4” Outside Diameter
• 0.65” Thickness Rim

Fits Type A Rings made by:

• Trumbull Polymer A-style Frame

• Ford Meter Box A, C, and X Style Frames

• A.Y. McDonald Type A and Type C

• Tyler 6150 Frame

• May fit others, see dimensions

Note that a Type A lid fits flush IN the top of the ring. Type X and C fit ON top of the ring. Type X lids fit the ring, but do not hinge to remain standing up.

Detailed Specs:

• ADA compliant slip resistant surface
• 20,000 lbs. lids furnished with nylon worm gear.
• (Also available with ductile worm gear (special order).
• Lids are furnished with standard (27/32”) pentagon bolt.
• Also available with large (1-1/32”) pentagon bolt (special order).
• Lids furnished marked “WATER METER”. (inquire about custom lettering)
• Bearing washers located above and below 20,000 lbs. lids are UHMWPE.
• 40,000 Lbs load rating version also available for heavy duty commercial road traffic.
• Antennas and brackets if shown are for illustration only and are not included. Brackets available in our other listings.
