Durable Trumbull Type A polymer cover designed for Neptune water meters — also fits Type C and Type X configurations

Description

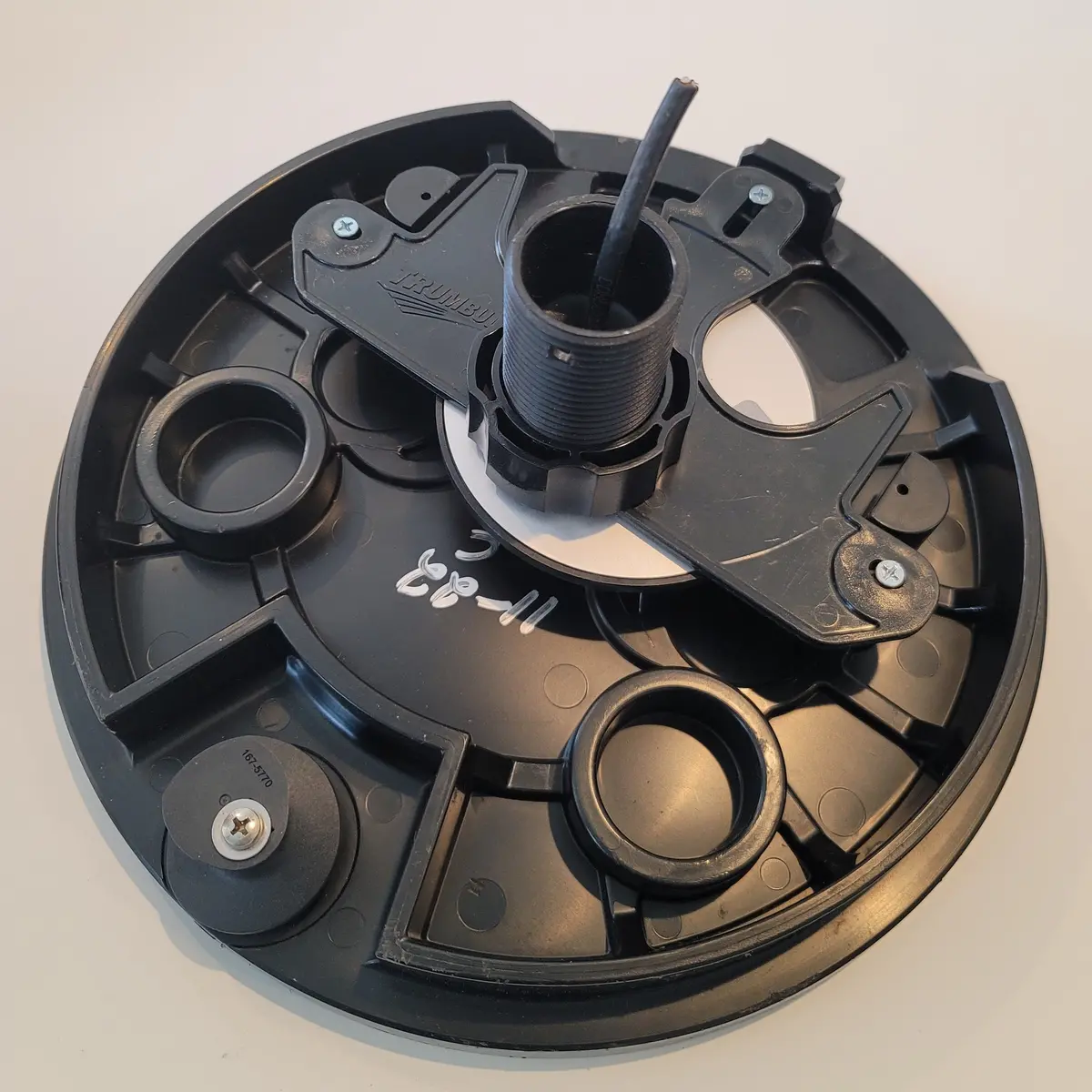

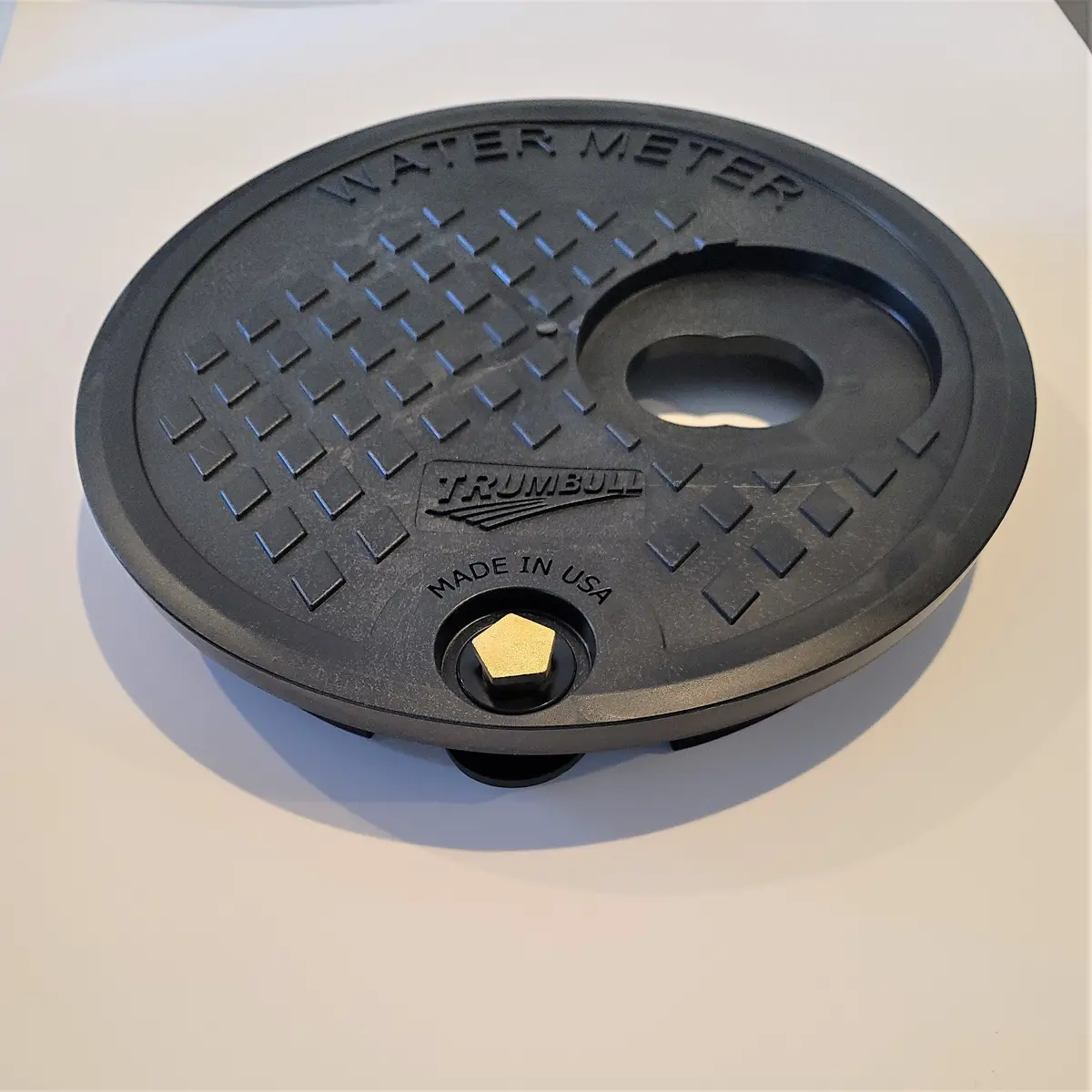

Trumbull lid with counter bore for Neptune AMR/AMI Devices so that the antenna is flush with the lid top to avoid trip hazards or damage from mowers or snow plows. The figure-8 shaped hole fits offset Neptune R-900 devices as well as centered touch read or other brand AMR and AMI devices.

Dimensions:

• 11-1/2” Clear Opening
• 12-1/4” Outside Diameter
• 0.65” Thickness Rim
• Counter Bore: 4.63″ Diameter x 0.43″ Depth.

Fits These 11″ opening Frames

• Ford Meter Box – Types A, C, and X
• A.Y. McDonald – Types A and C
• Tyler – Model 6150

This may fit other brands of A, C, or X frames. Please compare the actual dimensions.

Detailed Specs:

• ADA compliant slip resistant surface
• 20,000 lbs. lids furnished with nylon worm gear.
• (Also available with ductile worm gear (special order).
• Lids are furnished with standard (27/32”) pentagon bolt.
• Also available with large (1-1/32”) pentagon bolt (special order).
• Lids furnished marked “WATER METER”. (inquire about custom lettering)
• Bearing washers located above and below 20,000 lbs. lids are UHMWPE.
• Neptune Counter bore cover part number  367-5814
• Neptune antenna shown for illustration only and is not included.
